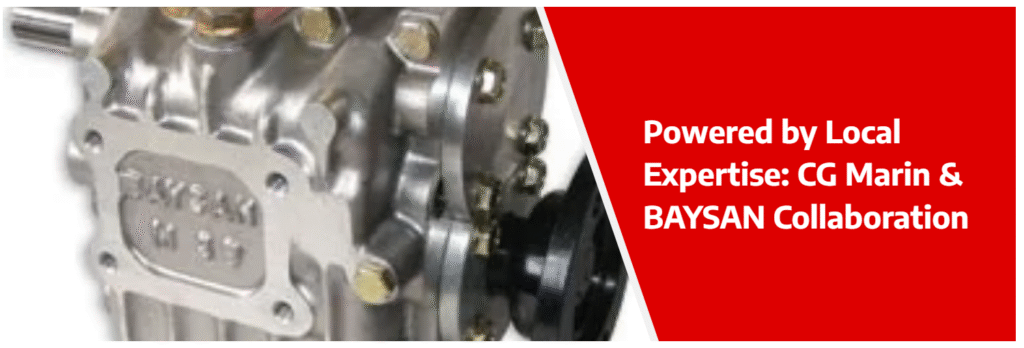

Powered by Local Expertise: CG Marin & BAYSAN Collaboration

Powered by Local Expertise: CG Marin & BAYSAN Collaboration

32 Years of Experience in Mechanical and Hydraulic Marine Transmissions

Developed by BAYSAN, these mechanical and hydraulic marine transmission systems offer high efficiency, durability, and the advantage of local manufacturing. With the engineering assurance of CG Marin, these systems are integrated into maritime projects to deliver long-lasting and robust solutions.

Mechanical Marine Transmissions

M10

Engine Power: 10 – 80 HP
Input Speed: 2800 RPM
Reduction Ratio: 2.0:1 – 2.5:1
Weight: 32 kg
Application: Light-duty boats, fishing boats

M30C

Engine Power: 50 – 150 HP
Input Speed: 3000 RPM
Reduction Ratio: 2.0:1 – 2.5:1
Weight: 52 kg
Application: Mid-range service boats

M30M

Engine Power: 50 – 150 HP
Input Speed: 3000 RPM
Reduction Ratio: 2.0:1 – 3.0:1
Weight: 58 kg
Application: Trawlers, pleasure boats

Hydraulic Marine Transmissions

M60

Engine Power: 80 – 250 HP
Reduction Ratio: 2.0:1 – 3.0:1
Clutch Type: Hydraulic
Weight: 85 kg
Feature: Compact design, quiet operation

H60

Engine Power: 100 – 300 HP
Reduction Ratio: 2.5:1 – 3.0:1
Clutch Type: Oil pressure system
Weight: 90 kg
Application: Service and passenger boats

H80

Engine Power: 150 – 400 HP
Reduction Ratio: 2.0:1 – 3.5:1
Weight: 110 kg
Feature: Vertical reduction gear structure

H130

Engine Power: 250 – 600 HP
Reduction Ratio: 2.5:1 – 4.0:1
Weight: 180 kg
Clutch System: Multi-disc hydraulic

H250A

Engine Power: 350 – 700 HP
Reduction Ratio: 3.0:1 – 4.5:1
Weight: 250 kg
Feature: Heavy-duty, high torque capacity

H500

Engine Power: 400 – 1000 HP
Reduction Ratio: 3.5:1 – 5.0:1
Clutch: Cooled hydraulic system
Weight: 420 kg
Application: Commercial cargo ships, pilot boats

H500A

Engine Power: 400 – 1000 HP
Reduction Ratio: 3.5:1 – 5.5:1
Weight: 430 kg
Feature: High durability, low vibration, smooth operation

CG Marin: End-to-End Marine Engineering Solutions

At CG Marin, we don’t just supply transmissions. We provide shaft and rudder systems, hydraulic solutions, power transmission components, professional assembly, and after-sales support. With our experienced engineering team, we offer customized solutions for all your maritime projects.

Power, Reliability & Aesthetics in One Place

Combining 27 years of engineering expertise with BAYSAN’s locally manufactured transmission technology, CG Marin blends performance with aesthetic design. We ensure maximum safety and efficiency with project-specific configurations, installation, and testing.
